1000X250 Wall mounted

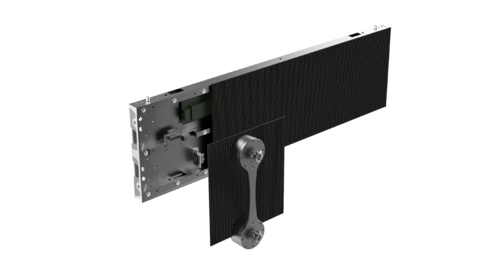

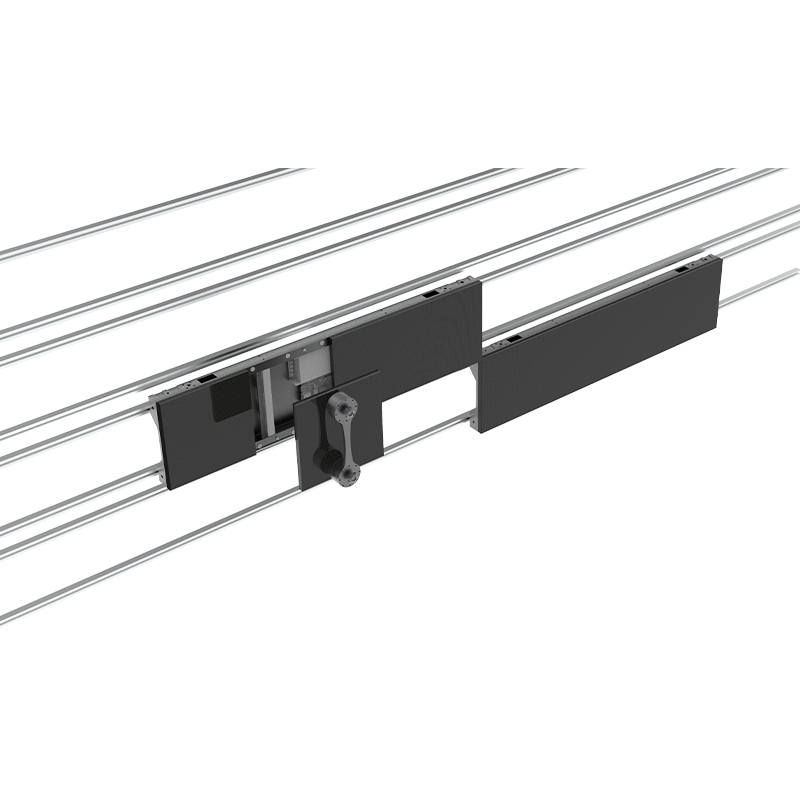

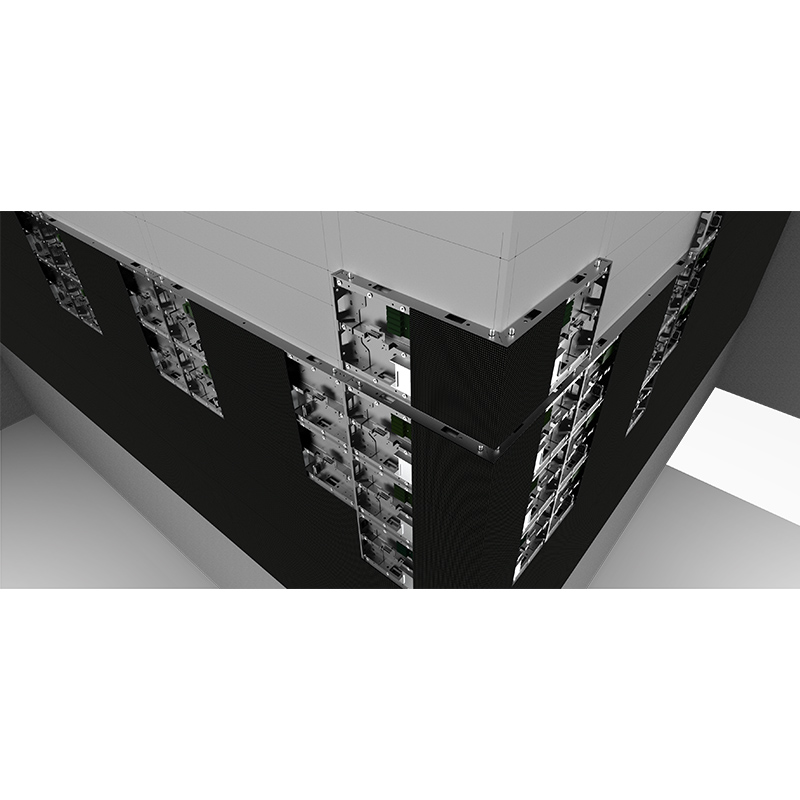

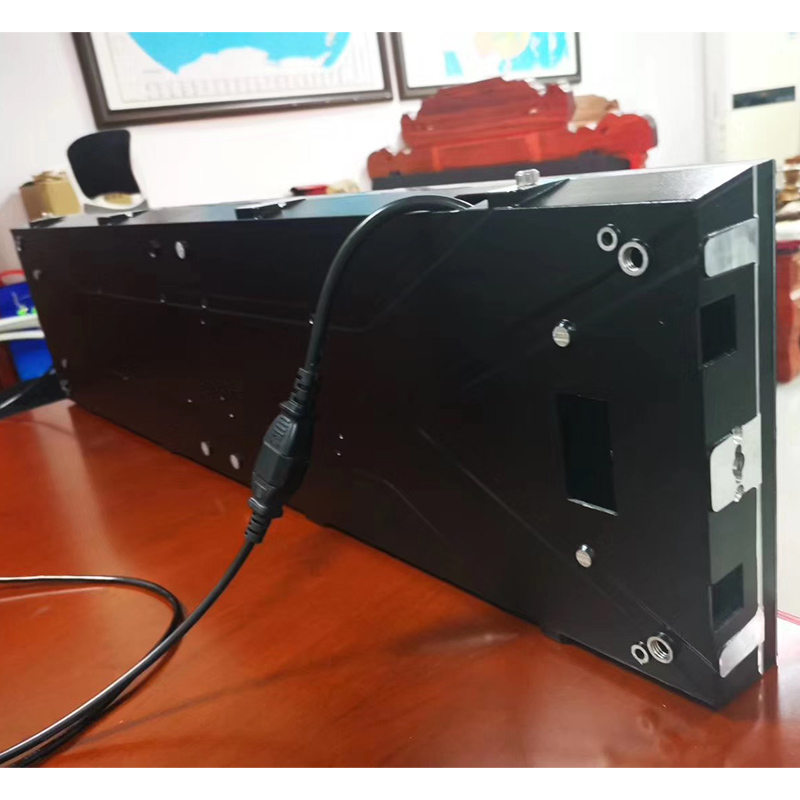

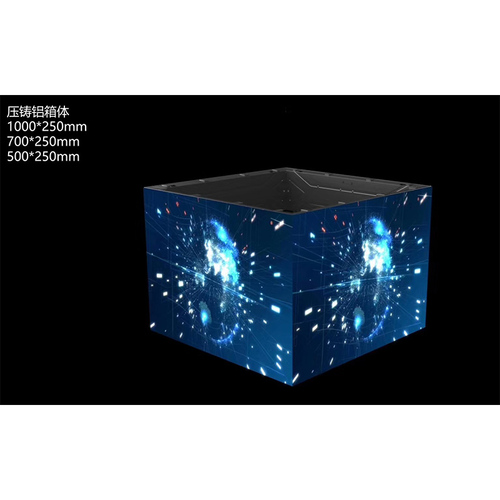

WP series by AHL is engineered to provide high-quality display effect for the most demanding applications.Very slim design of the cabinet.Big modules for easy changing, redundancy supported.Front serviceable only, cabinets can be directle mounted on the wall with bolts. Not reqire a steel install frame. Best suits for conference rooms, hotel lobbies，high -end places. Customized design of the cabinet, 90 Degree cabinet shape as option.
| Parameter | Specification | |||
| Model Name | W 2.6 | W 2.9 | W 3.9 | W 4.8 |
| Pixel Pitch | 2.6 mm | 2.9 mm | 3.9 mm | 4.8 mm |
| Application | Indoor | |||
| Module (small unit) size | 250X250 mm | |||
| Pixel Configuration | SMD 2020 | |||

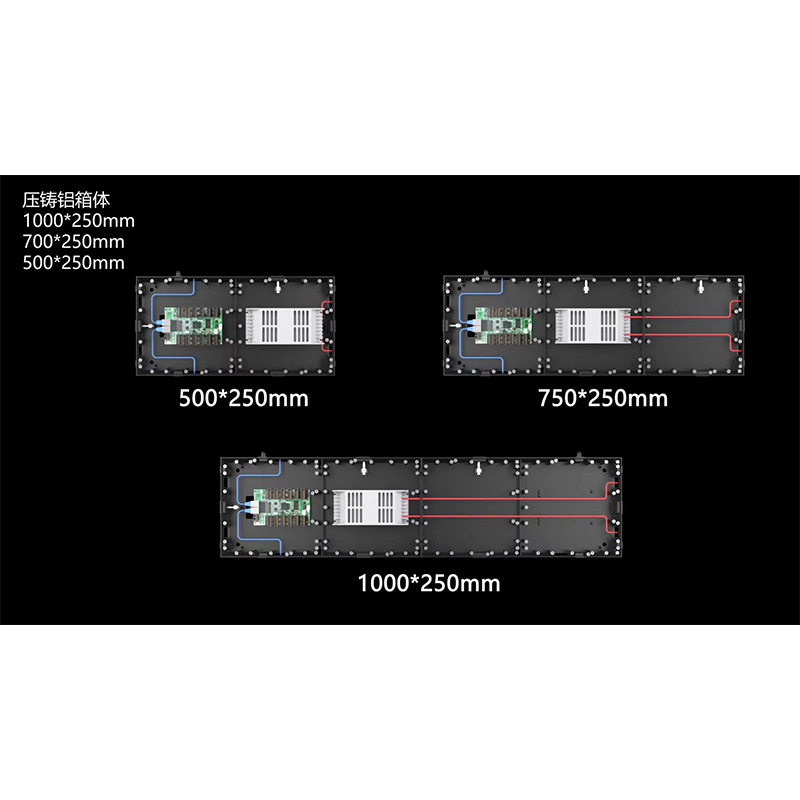

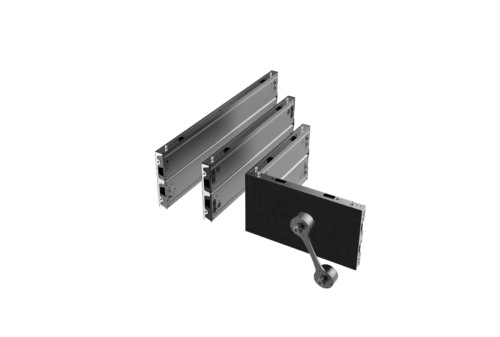

| Panel Size | 500*250* 55 mm; 750*250* 55 mm; 1000*250* 55 mm; 1250*250* 55 mm | |||
| White balance | 6500 K | |||
| Panel Resolution | 384*96 | 345*86 | 256*64 | 208*52 |
| Panel Weight | 6 kg/unit | |||
| Cabinet Material | Aluminum | |||
| Pixel per ㎡ | 147929 | 118906 | 65746 | 43403 |
| Brightness | 800-1200 nits | |||
| IP Rating (Front/Rear) | IP 30 | |||
| Fresh Rate | 1920/ 3840 Hz | |||
| Scan Mode | 1/28 | 1/28 | 1/16 | 1/13 |
| Max / Avg Power Consumption | 580/250 W/m² | |||
| Color Processing | 14-16 bit | |||
| Viewing Angle (H/V) | 120 /110 ° ° | |||
| Operating Temperature | -10~45° | |||
| Main Power Source | AC100-240V; 50/60Hz | |||
| Humidity | 10~90% RH | |||
| Life Time | 100000 Hours | |||
| Service access | Front with magnets | |||
