Indoor HD Front Service LED Display - AHL LED

480×480 mm Indoor HD Front Service LED Display

Short Description:

Engineered to provide high-quality display effect for the most demanding applications. Front serviceable and cableless, full size display with less space consumption. A stackable design for simple ins


Product Detail

Product Tags

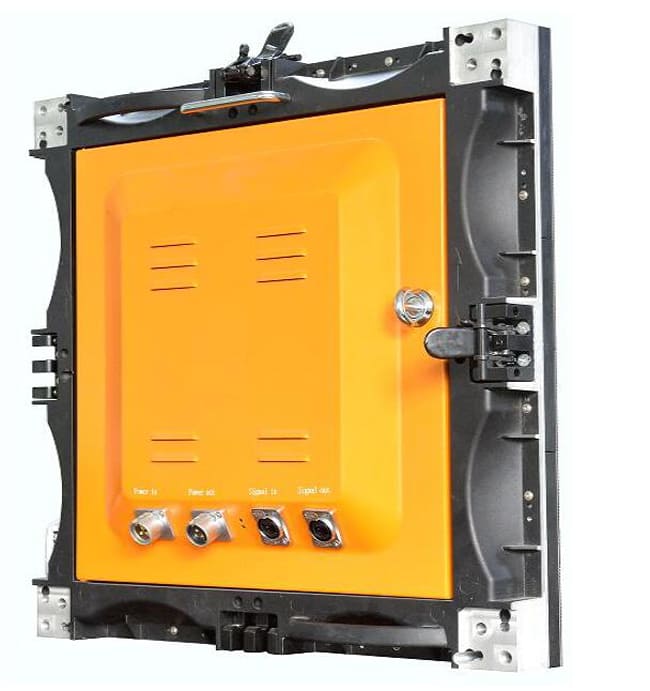

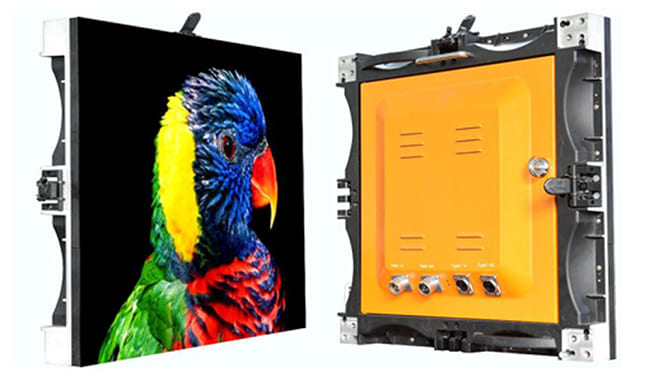

Engineered to provide high-quality display effect for the most demanding applications. Front serviceable and cableless, full size display with less space consumption. A stackable design for simple installation. Cabinets connect power and signage down through the column of cabinets. The connection points and two alignment pins located on each cabinet assist in vertically aligning cabinets together, further reducing installation time. 16:9 aspect ratio for popular resolutions, including full HD, 4K and other configurations to meet the widest range of application requirements.

Parameter Specification
Model Name P 1.875
Pixel Pitch 1.875 mm
Pixel Configuration  SMD 1515
Panel Size 480*480*65 mm
Panel Resolution 256*256
Panel Weight 8.2 kg/unit
Pixel per ㎡ 284440
Brightness 200-800nits
IP Rating (Front/Rear) Back: IP41, Front: IP41
Fresh Rate 3000 HZ – on request
Max / Avg Power Consumption per m2 650/235W/m²
Color Processing 16bit
Viewing Angle (H/V) 160 /160 °
Operating Temperature  -10~45°
Main Power Source AC100-240V; 50/60Hz
Humidity 10~90% RH
Life Time 100000 Hours
Maintainance method Front/ Back service
