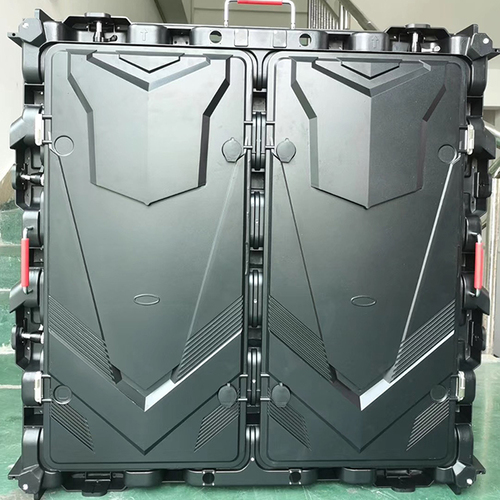

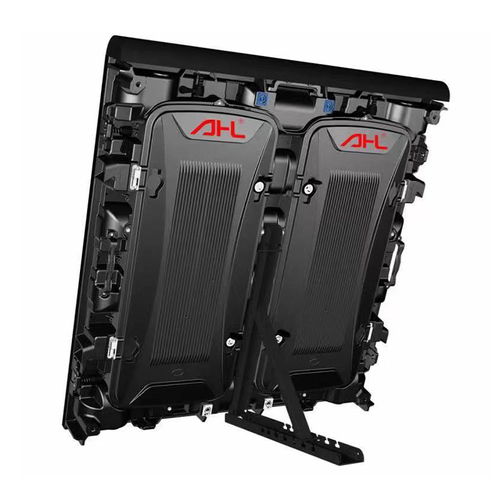

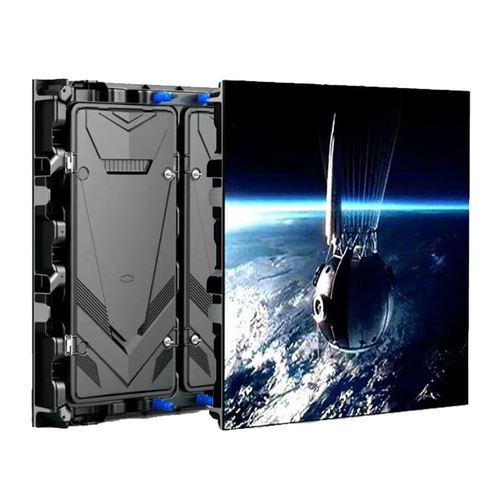

Outdoor waterproof fixed LED display 960Х960
Outdoor Waterproof Type Fixed LED Display Unit “Front IP65/Rear IP54 Independent waterproof module Excellent waterproof cabinet. No worry about water resistance, dust resistance and corrosion resistance issues” Ultra high precision CNC workmanship processing precision < 0.1mm; special seamless connection design, structure to control the gap within ±0.03 mm “Super viewing angle: Horizontal 140° and Vertical 120 ° Viewing position as you like”
| Parameter | Specification |
| Application | Outdoor |
| Model Name | P 10 SMD |
| Pixel Pitch | 10 mm |
| Module (small unit) size | 320X160 mm |
| Pixel Configuration | DIP 346 |
| Panel Size | 960*960*115 mm |
| White balance | 6500 K |
| Panel Resolution | 96*96 |
| Panel Weight | 32 kg/unit |
| Cabinet material | Die- cast aluminum |
| Pixel per ㎡ | 10000 |
| Brightness | 7500 nits |
| IP Rating (Front/Rear) | IP 65/54 |
| Fresh Rate | 1920/3840 HZ – on demand |
| Scan Mode | 1/4 |
| Max / Avg Power Consumption | 690/260 W/m² |
| Color Processing | 14-16 bit |
| Viewing Angle (H/V) | 120 /70 ° ° |
| Operating Temperature | -40~65° |
| Main Power Source | AC100-240V; 50/60Hz |
| Humidity | 10~90% RH |
| Life Time | 100000 Hours |
| Service access | Front/Rear – on demand |
