F series 640X 480

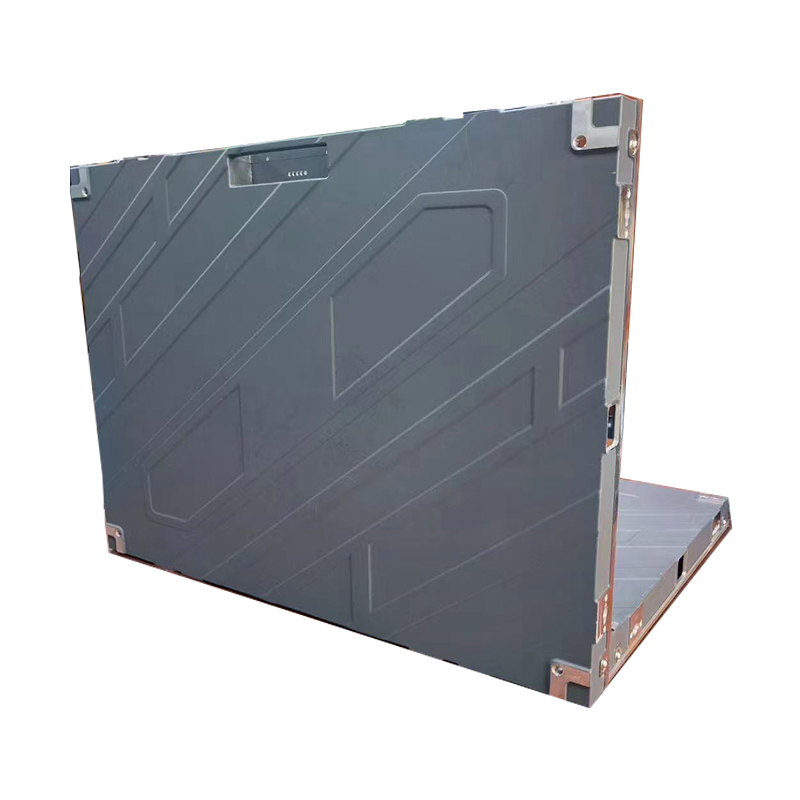

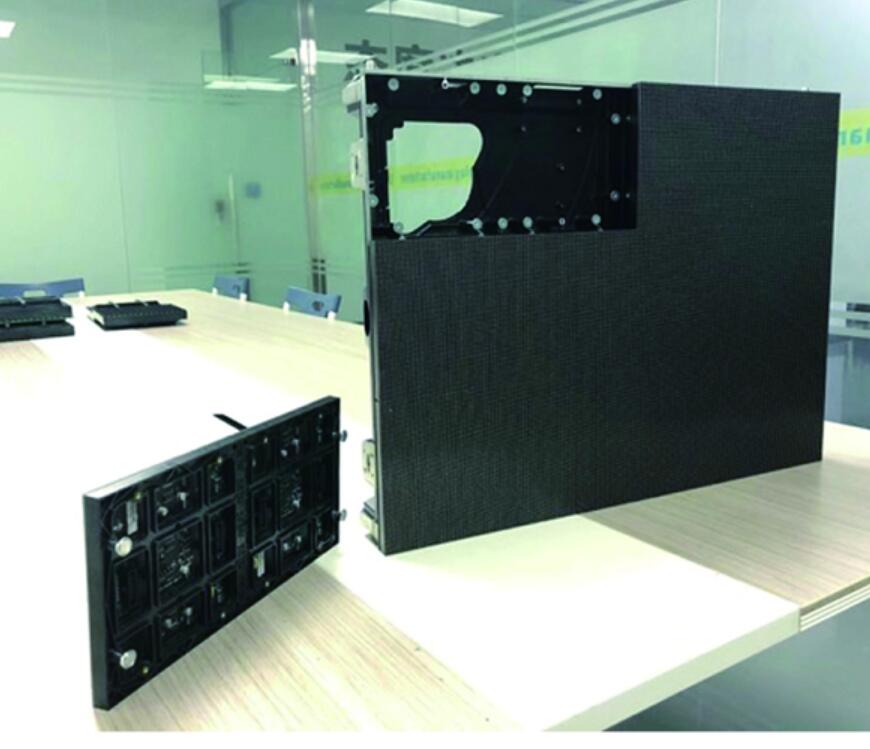

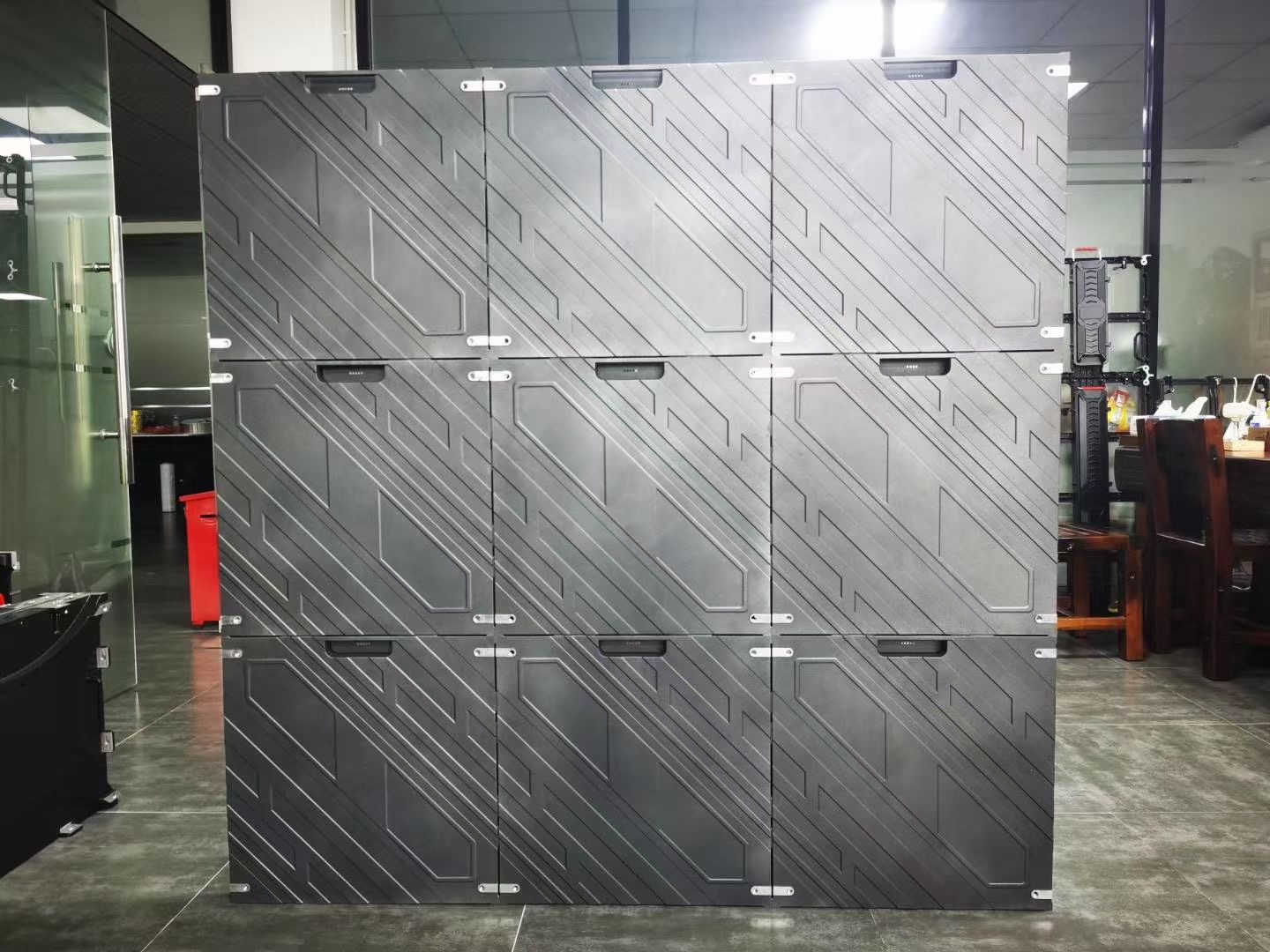

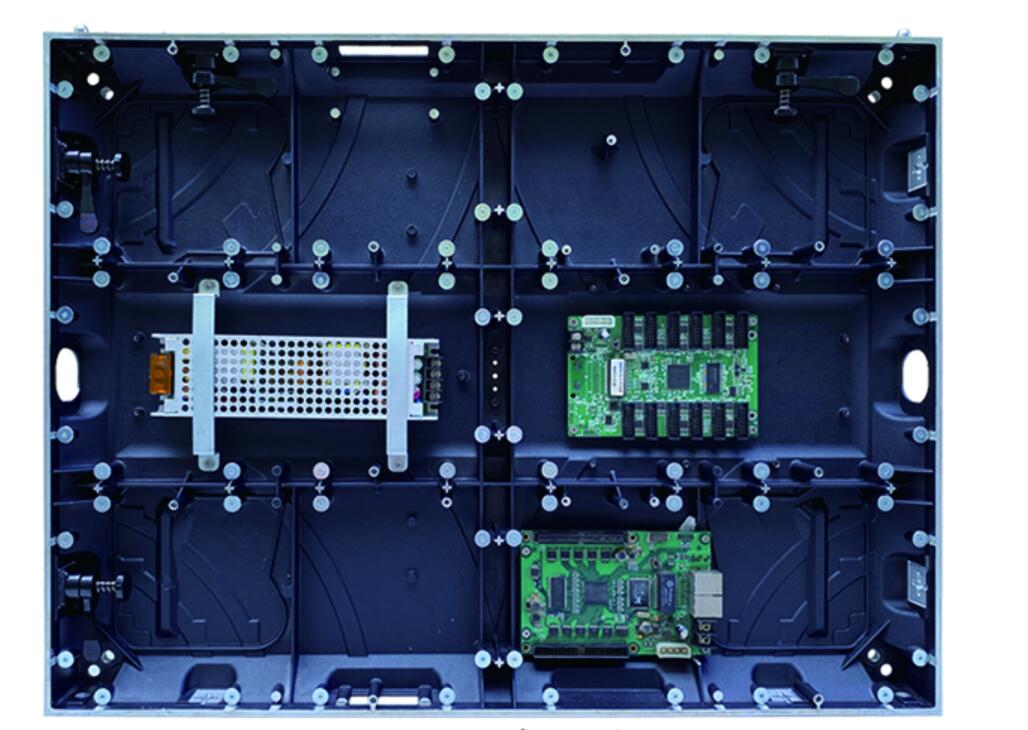

Engineered to provide high-quality display effect for the most demanding applications. Front serviceable and cableless, full size display with less space consumption. A stackable design for simple installation. Cabinets connect power and signage down through the column of cabinets. The connection points and two alignment pins located on each cabinet assist in vertically aligning cabinets together, further reducing installation time. 16:9 aspect ratio for popular resolutions, including full HD, 4K and other configurations to meet the widest range of application requirements.
| Parameter | Specification | ||||||
| Model Name | P 1.25 | P 1.37 | P 1.53 | P 1.66 | P 1.83 | P 2 | P 2.5 |
| Pixel Pitch | 1.25 mm | 1.37 mm | 1.53 mm | 1.66 mm | 1.83 mm | 2 mm | 2.5 m |
| Pixel Configuration | SMD 1010, SMD 1515, SMD2020 | ||||||
| Panel Size | 640*480*53 mm; | ||||||
| Panel Resolution 640X480 mm | 512*384 | 468*350 | 418*314 | 385*290 | 350*262 | 320*240 | 256*192 |
| Panel Weight | 6 kg/unit | ||||||
| Pixel per ㎡ | 640000 | 532793 | 427186 | 362897 | 298605 | 250000 | 160000 |
| Brightness | 600-1000 nits | ||||||
| IP Rating (Front/Rear) | Back: IP44, Front: IP41 | ||||||
| Fresh Rate | 1920/ 3840 HZ – on request | ||||||
| Max / Avg Power Consumption per m2 | 650/235W/m² | 600/205W/m² | 600/205W/m² | 690/255W/m² | 690/255W/m² | ||
| Color Processing | 16bit | ||||||
| Viewing Angle (H/V) | 160 /140 ° | ||||||
| Operating Temperature | -10~45° | ||||||
| Main Power Source | AC100-240V; 50/60Hz | ||||||
| Humidity | 10~90% RH | ||||||
| Life Time | 100000 Hours | ||||||
| Maintainance method | Front service | ||||||
| Certification | CE, EMC, Rohse – available on demand | ||||||
