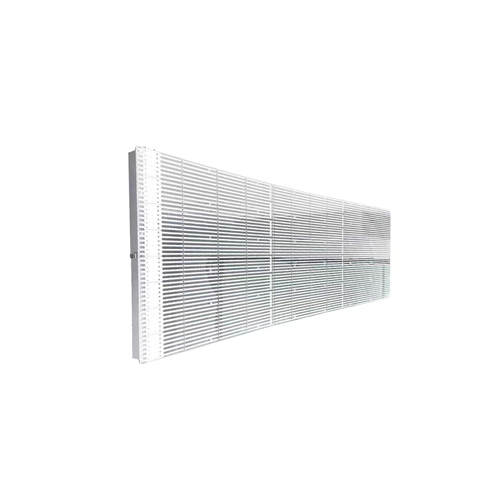

Flexible Transparent Film LED Display

Short Description:

Transparent LED display screens are a new type of display technology with high transparency, bright colors, and high brightness. In stores, transparent LED displays can be applied to store glass displ

Send email to us

Product Detail

Product Tags

Item	FT-P6	FT-P8	FT-P10	FT-P15	FT-P20
Unit size（mm)	816X384	1000X400	1000X400	990X390	1000X400
LED type	REE1515	REE1515	REE1515	REE2022	REE2022
Pixel Conf	R1G1B1	R1G1B1	R1G1B1	R1G1B1	R1G1B1
Pixel Pitch（mm)	6×6	8×8	10×10	15×15	20×20
Unit resolution	136X64	125X50	100X40	66X26	50X20
Pixel Dencity dot/㎡)	27777	15625	10000	4356	2500
Brightness (cd/㎡)	2000/4000	2000/4000	2000/4000	2000/4000	2000/4000
Transparency level	90%	92%	94%	94%	95%
View angle	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Input voltage	AC110-240V 50/60Hz	AC110-240V 50/60Hz	AC110-240V 50/60Hz	AC110-240V 50/60Hz	AC110-240V 50/60Hz
Maximum power	600w/㎡	600w/㎡	600w/㎡	600w/㎡	600w/㎡
Average power	200w/㎡	200w/㎡	200w/㎡	200w/㎡	200w/㎡
Work environment	C -20~55; 10-90%	C -20~55; 10-90%	C -20~55; 10-90%	C -20~55; 10-90%	C -20~55; 10-90%
Weight	1.3kg	1.3kg	1.3kg	1.3kg	1.3kg
Thickness	2.5mm	2.5mm	2.5mm	2.5mm	2.5mm
Scan	Static	Static	Static	Static	Static
Life Span	100,000H	100,000H	100,000H	100,000H	100,000H
Frey Level	16bit	16bit	16bit	16bit	16bit
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
