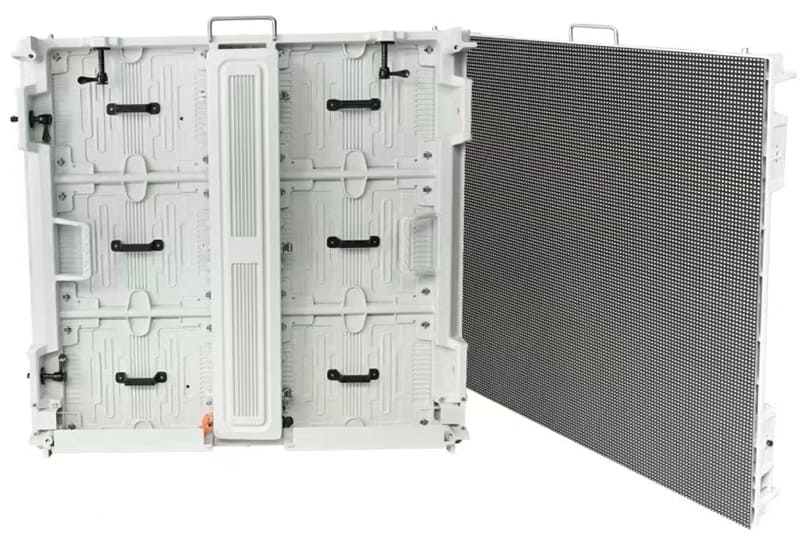

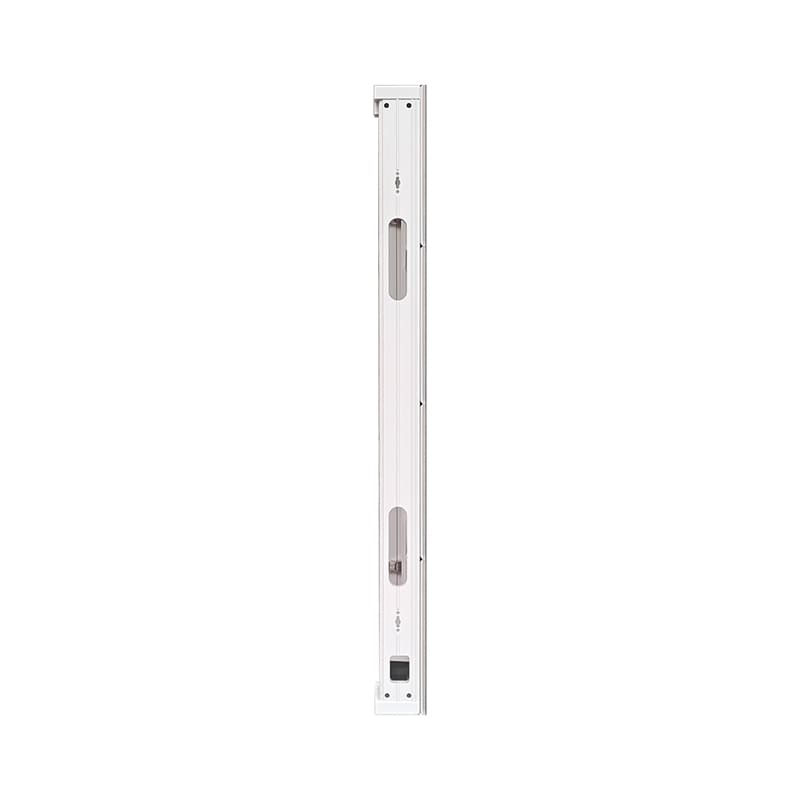

D Series 960 Dual Service LED Screen Board
AHL LED signage delivers amazing visual experience in a variety outdoor applications, ranging from mediafacades and architectural lighting solutions to sports competitions to constantly changing outdoor environment.Outdoor Waterproof Type Fixed LED Display Unit “Front IP65/Rear IP54 Independent waterproof module Excellent waterproof cabinet. No worry about water resistance, dust resistance and corrosion resistance issues” Ultra high precision CNC workmanship processing precision < 0.1mm; special seamless connection design, structure to control the gap within ±0.03 mm “Super viewing angle: Horizontal 140° and Vertical 120 ‘Viewing position as you like’
| Parameter | Specification | ||
| Item | D 6.67 | D 8 | D 10 |
| Pixel Pitch(mm) | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 72×54 | 60×45 | 48×36 |
| Module Size(mm) | 480×320×16 | ||
| Module Weight(kg) | 1.93 | ||
| Module Qty/Cabinet(W×H) | 3×2 | ||
| Cabinet Resolution(W×H) | 22477 | 15625 | 10000 |
| Cabinet Size(mm) | 960×960×80 | ||
| Cabinet Area(㎡) | 1 | ||
| Cabinet Weight(kg/cabinet) | 25 | ||
| Cabinet Material | Profile Cabinet (Aluminum Alloy) No fan reqired | ||
| Cabinet Density（dot/m²） | 112896 | 65536 | 43264 |
| IP Rating | IP66 | ||
| White Balance Brightness(nits) | ≥5000 | ≥5500 | ≥5500 |
| Visual Angle(H/V) | 140°/ 120° | ||
| Luminous point centre deviation | ＜3% | ||
| Luminance uniformity | ≥97% | ||
| Chromaticity uniformity | Within ±0.003Cx, Cy | ||
| Contrast Ratio | 333.3340278 | ||
| The Max Power Consumption(W/㎡) | 550 | ||
| Average Power Consumption(W/㎡) | 186 | ||
| Input Voltage | AC100~240V | ||
| Frequency(Hz) | 50&60 | ||
| Refreshing Ratio(Hz) | 3840/7680 | ||
| Maintenance Method | Front and Rear | ||
| Lifespan(hrs) | 100000 | ||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | ||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH (Non Condensing) | ||
