D- Series Media Facade

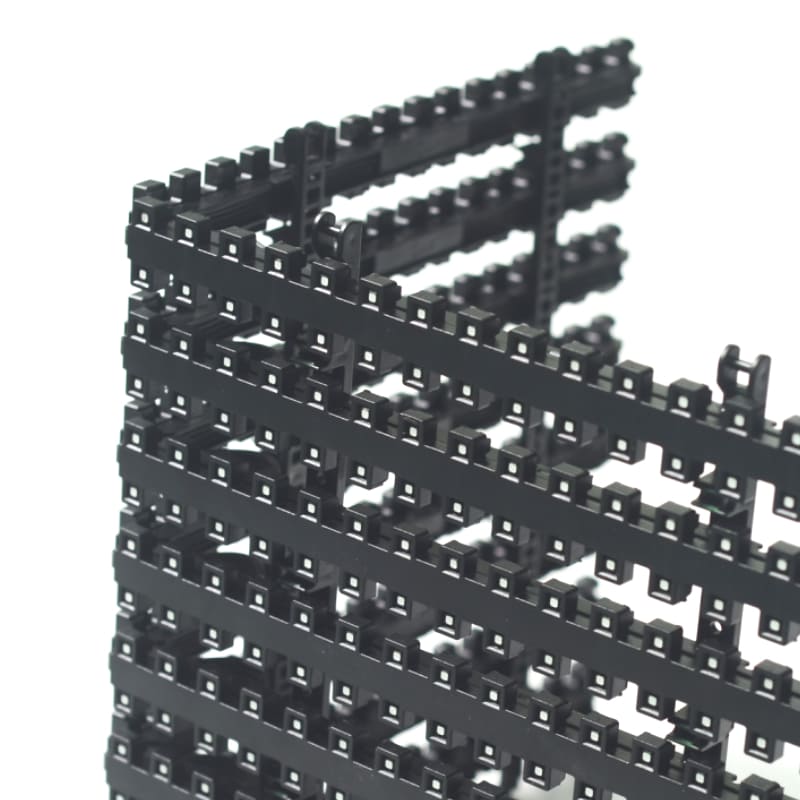

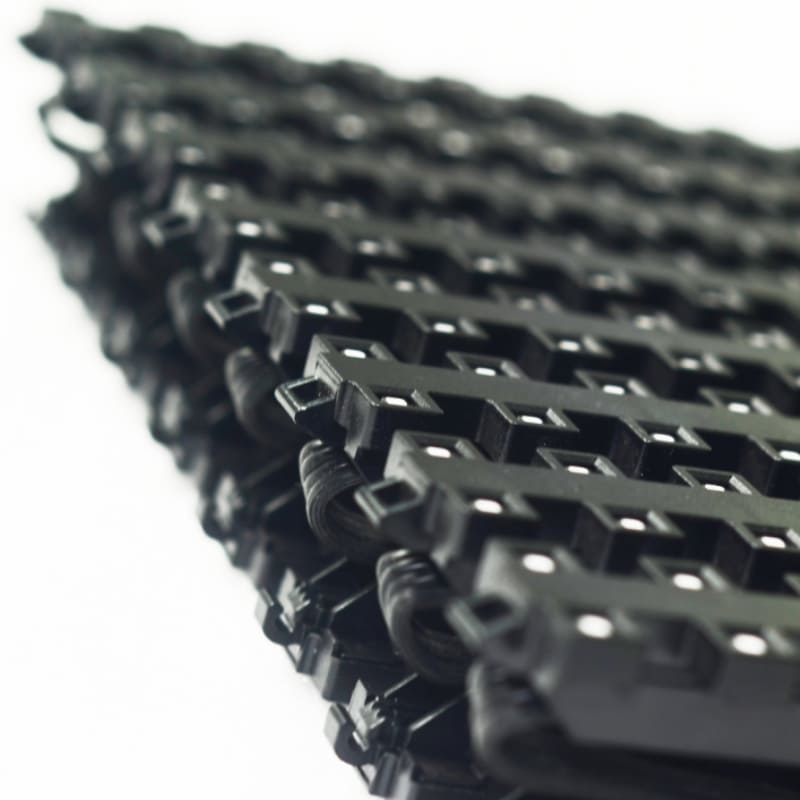

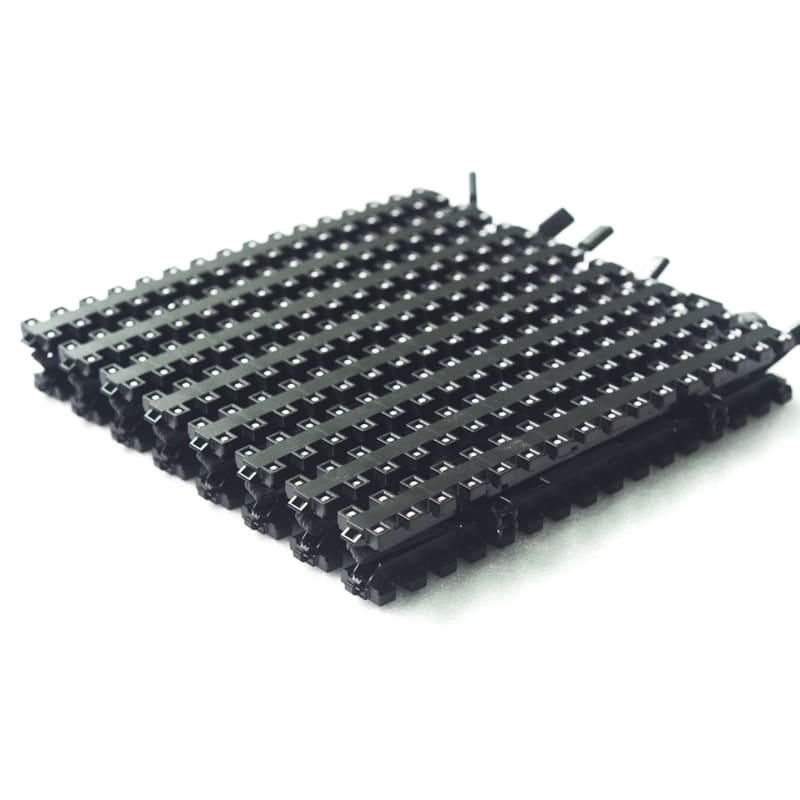

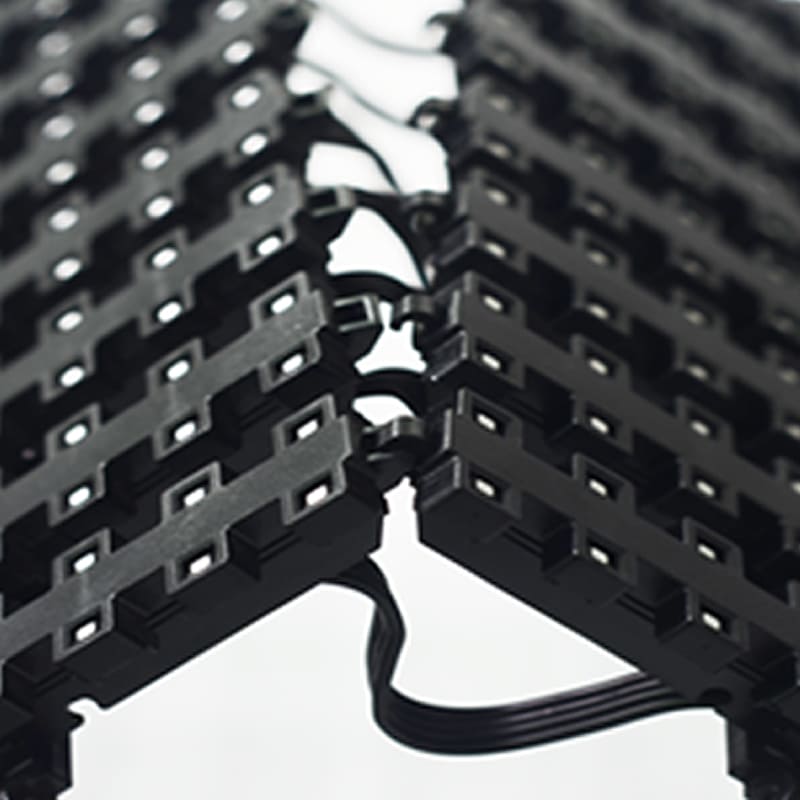

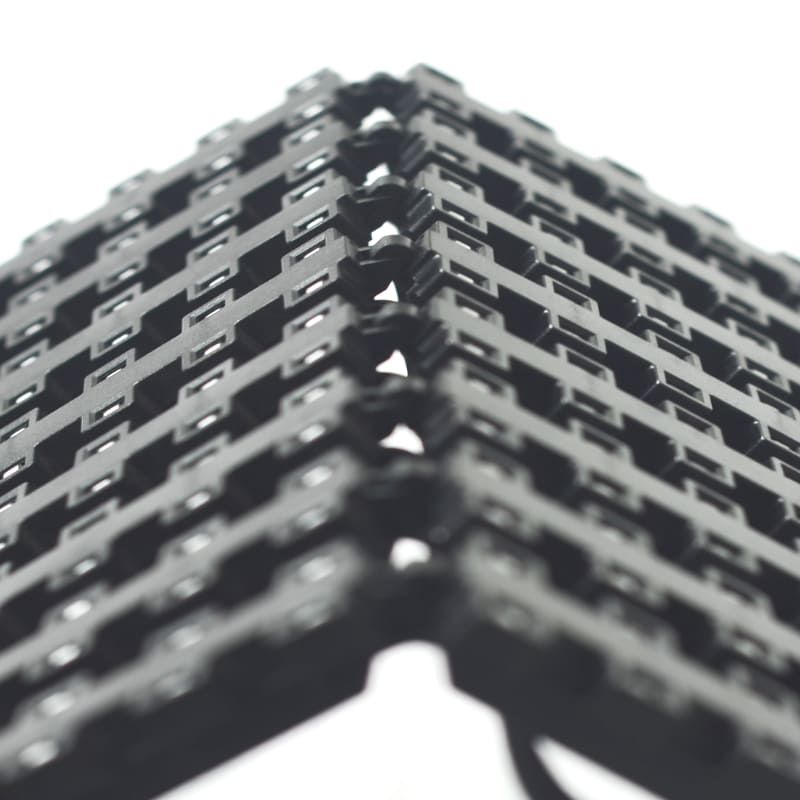

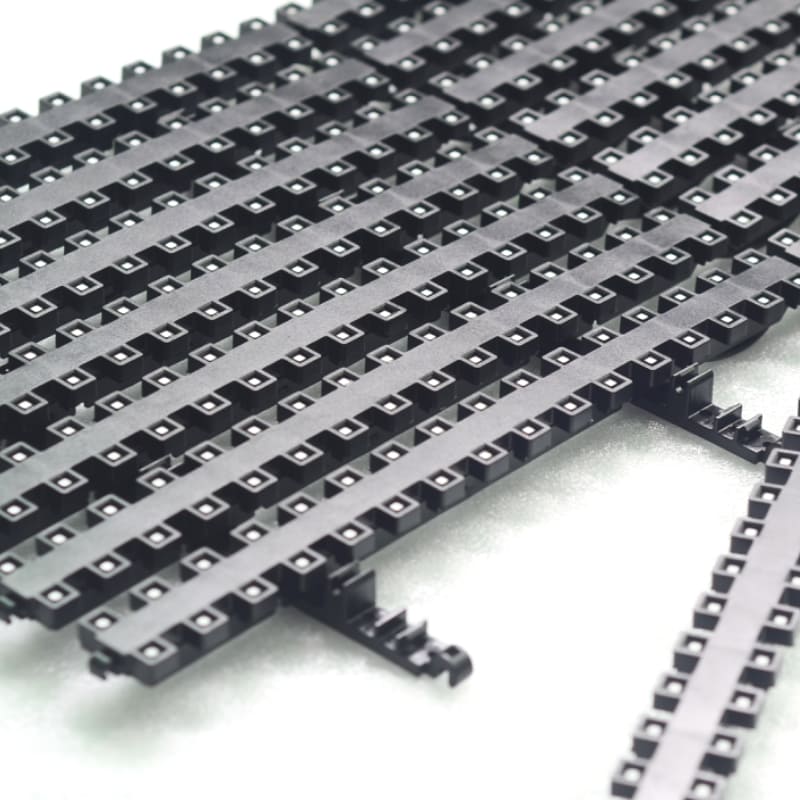

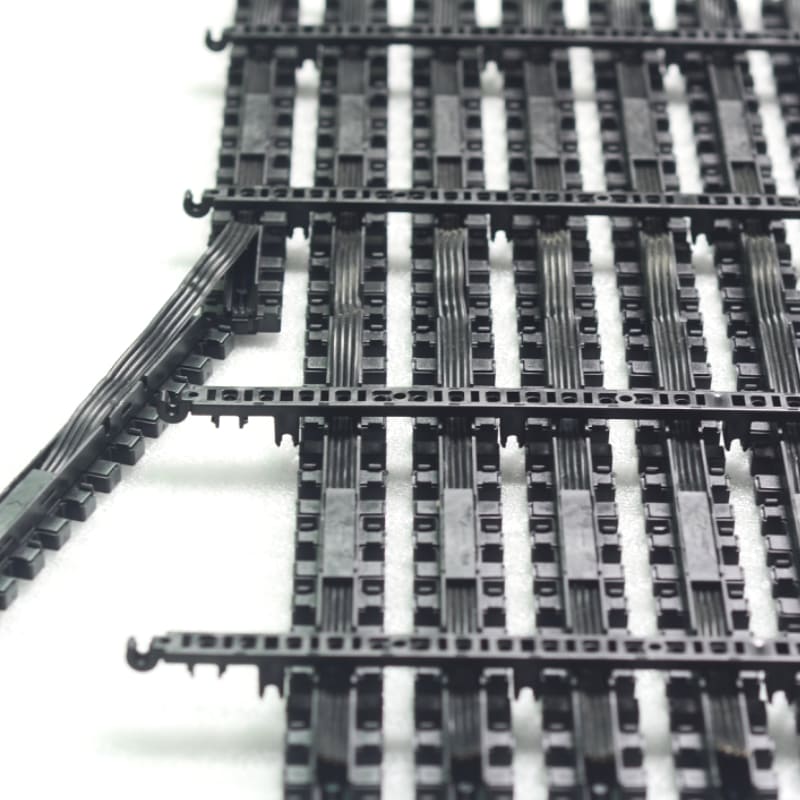

D series new LED waterproof transparent screen, named after the English word Double. Adopting a dual row light source structure design, it is ultra light, ultra-thin, and has high transparency.New screw puncture technology, capable of connecting up to 1024 pixels in series.Refresh frequency 3840Hz.Frame switching frequency 60 frames.Transmittance up to 79%.Outdoor lightning protection and electrostatic (ESD) professional protection design.

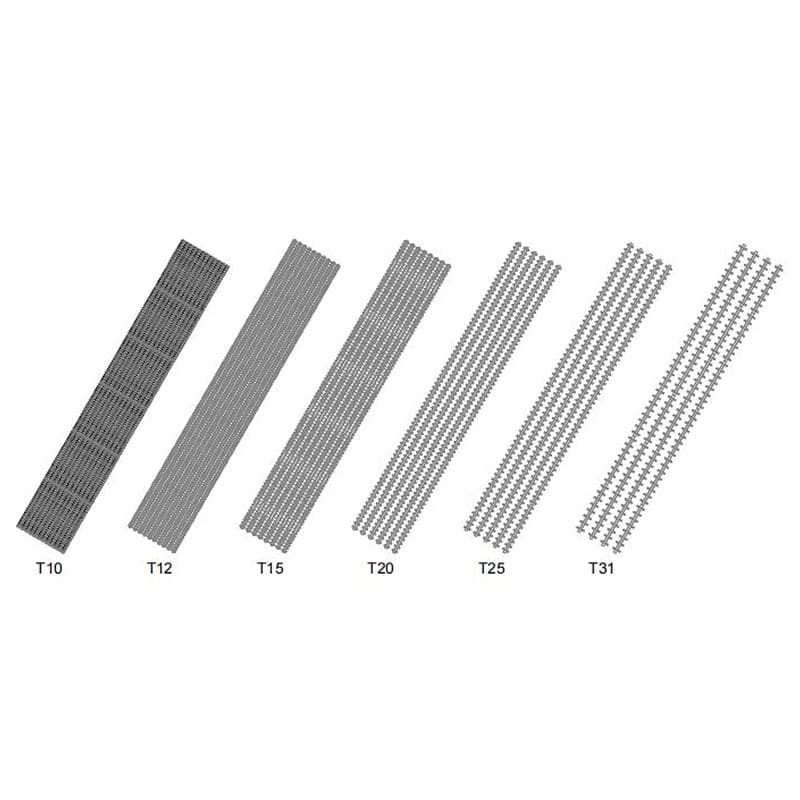

| Specification and model | D10 | D12 | D15 | D20 | D25 | D31 |
| Spacing | 10 | 12.5 | 15.625 | 20.83 | 25 | 31.25 |
| Light source type | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 | SMD3535 |
| Light source perspective | 120° | 120° | 120° | 120° | 120° | 120° |
| Pixel composition | 1RGB | 1RGB | 1RGB | 1RGB | 1RGB | 1RGB |
| Pixel density | 10000pixel/M2 | 6400pixel/M2 | 4096pixel/M2 | 2304pixel/M2 | 1600pixel/M2 | 1024pixel/M2 |
| Scanning method | 2025/1/5 | 1/5、Static | 1/8、Static | 1/6、Static | 1/5、Static | Static |
| Grayscale level | 16BIT | 16BIT | 16BIT | 16BIT | 16BIT | 16BIT |
| Brightness | 5000CD | 2000/6000CD | 2000/6000CD | 2000/6000CD | 2000/6000CD | 1000/6000CD |
| permeability | 36% | 46% | 55% | 65% | 70% | 79% |
| Frame switching frequency | 60FPS | 60FPS | 60FPS | 60FPS | 60FPS | 60FPS |
| refresh frequency | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| input voltage | DC5V/24V | DC5V/24V | DC5V/24V | DC5V/24V | DC5V/24V | DC5V/24V |
| maximum power | 600W | 200W/600W | 150W/600W | 200W/700W | 240/500W | 100/300W |
| Weight | 10kg/M2 | 8kg/M2 | 6.4kg/M2 | 4.8kg/M2 | 4kg/M2 | 3.2kg/M2 |
| working life | ≥50，000H | ≥50，000H | ≥50，000H | ≥50，000H | ≥50，000H | ≥50，000H |
| Protection level | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Fire rating | V0 | V0 | V0 | V0 | V0 | V0 |
| Unit Pixel | 250*25 | 240*20 | 256*16 | 252*12 | 240*10 | 256*8 |
| Maximum Unit | 2.5*0.25 m | 3*0.25 m | 4*0.25 m | 5.25*0.25 m | 6*0.25 m | 8*0.25 m |
