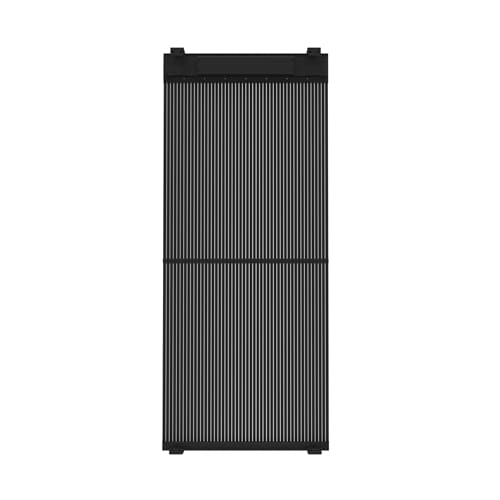

HV- Series Media Facade
★ New screw puncture technology, capable of connecting up to 1024 pixels in series
★ Refresh frequency 3840Hz
★ Frame switching frequency 60 frames
★ Transmittance up to 79%
★ Outdoor lightning protection and electrostatic (ESD) professional protection design
Next Generation Mesh LED Display for Outdoor Applications. Excellent performance in strong direct sunlight with 8000nits High Brightness. Dynamic image with 3840 hz high refresh rate
| Parameter | Specification | ||||
| Product model | HV 7/12 | HV 8/12 | HV 7.8/15 | HV10 | HV15 |
| Pixel configuration | 1R1G1B | ||||
| LED type | SMD 2727/3535 | ||||
| Pixel Pitch(mm) | 12.5 mm / 7.8 mm | 12.5 mm/8.33 mm | 15.625/7.8 mm | 10.4 mm | 15.625 mm |
| Cabinet size(W×H×D) | L500×H1000mm | ||||
| Cabinet resolution(W×H) | 40×128 | 40×120 | 32×128 | 48×96 | 32×64 |
| Pixel density | 10256 dots/㎡ | 9603 dots/㎡ | 9216 dots/㎡ | 9246 dots/㎡ | 4096 dots/㎡ |
| Cabinets position | Horizont/Vertically | ||||
| Transparency level | 13% | 13% | 15% | 35% | 40% |
| Brightness | ≥7000nit | ≥7000nit | ≥6500nit | ≥5500nit | ≥5500nit |
| Weight | 16 KG/㎡ | ||||
| Maximun power consumption | 850W/㎡ | 780W/㎡ | 780W/㎡ | 690W/㎡ | 480W/㎡ |
| Average power consumption | 350W/㎡ | 260W/㎡ | 260W/㎡ | 350W/㎡ | 160W/㎡ |
| Viewing Angle | H120°/V60° | H120°/V60° | H120°/V60° | H100°/V60° | H100°/V60° |
| Waterproof | IP67 | IP67 | IP67 | IP67 | IP67 |
| Cabinets width | 113mm | ||||
| Width after install | 150mm | ||||
| Wind resistancy level | 12 | ||||
| Fire safety | 10S/cabinet | ||||
| Service method | Front & rear | ||||
| Scanning | Static | ||||
| White balance | 3200-9300K | ||||
| Frame-changing frequency | 60Hz | ||||
| Working temperature | -40℃- 60℃ | ||||
| Storage temperature | -55℃120℃ | ||||
| Life time | ≥100,000 hours | ||||
| Input voltage(V) | AC110-220V | ||||
| Grey scale | 16bit | ||||
| Seismic resistance | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||
